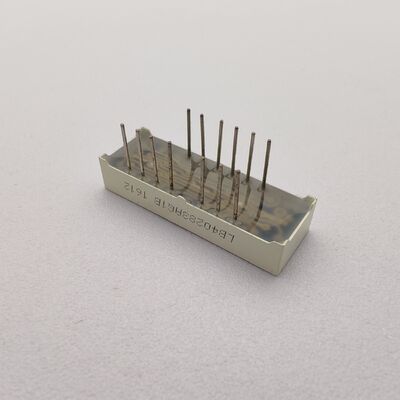

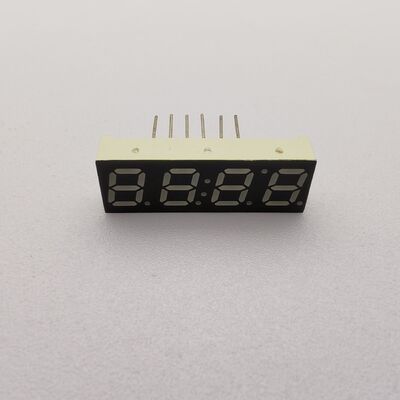

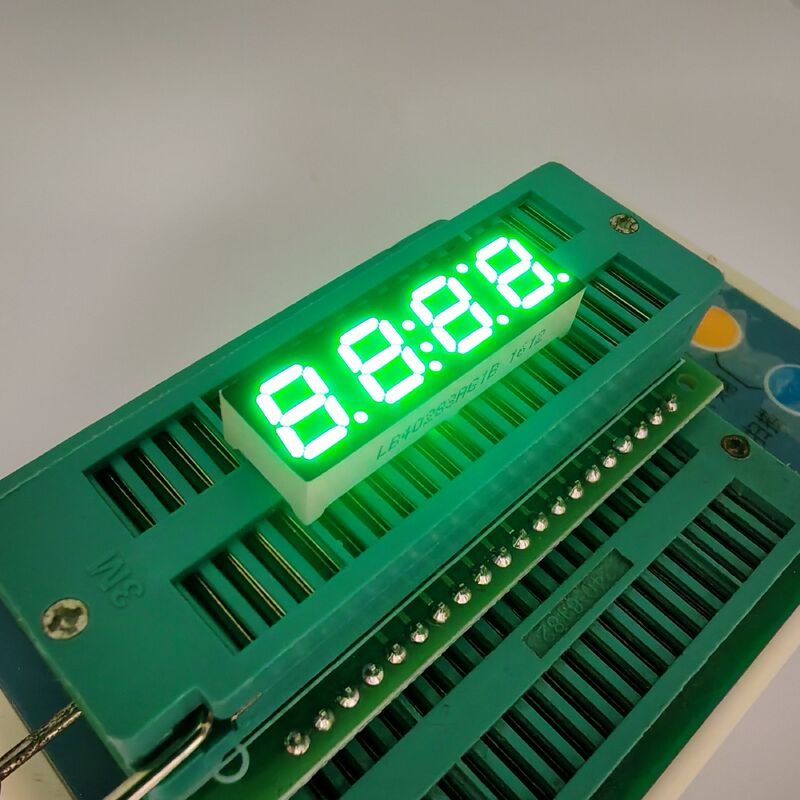

4-Digit Pure Green 7-Segment LED Display for Timer Control

4-Digit Pure Green 7-Segment LED Display for Timer Control

ব্র্যান্ড নাম:	LIGHT-BO
মডেল নম্বর:	LB40283DG1B
MOQ:	1000
মূল্য:	Negotiate
অর্থ প্রদানের শর্তাবলী:	টি/টি, ওয়েস্টার্ন ইউনিয়ন
সরবরাহের ক্ষমতা:	20000pcs/দিন

বিস্তারিত তথ্য

পণ্যের বর্ণনা

বিস্তারিত তথ্য

উৎপত্তি স্থল:

শেনজেন ， চীন

সাক্ষ্যদান:

ISO9001&RoHS

টিউব চিপ রঙ:

বিশুদ্ধ সবুজ

ফরোয়ার্ড ভোল্টেজ:

3.6-3.2V

ডিসপ্লে_টাইপ:

সাধারণ ক্যাথোড

তরঙ্গদৈর্ঘ্য:

515-525nm

আলোকিত তীব্রতা:

120-180mcd

স্টোরেজ তাপমাত্রা:

-40℃~+85℃

প্যাকেজিং বিবরণ:

EPE+কার্টন

যোগানের ক্ষমতা:

20000pcs/দিন

বিশেষভাবে তুলে ধরা:

4-digit green LED display

7-segment timer control display

pure green LED segment display

পণ্যের বর্ণনা

4-Digit Pure Green 7-Segment LED Display for Timer Control

Product Name	4-Digit Pure Green 7-Segment LED Display for Timer Control	Custom designs for various applications
Your Part Number	LB40283DG1B	Printing of your custom part number is supported
Digit Number	4 digits	Available in 2, 3, 4, 5, or 6 digits
Standard Color	Pure Green	White, blue, red, yellow-green, orange, etc.
Polarity	Common Anode	Common Cathode is available
Lifespan	80,000 hours	-
Free Samples	Supported	Tooling samples require 15-20 working days
Sample Lead Time	5-7 working days	-
Production Lead Time	15-20 working days	May vary according to order quantity
OEM/ODM Services	Fully Supported	Customization based on your drawings or ideas
Logo Printing	Supported	Customization based on your provided artwork
Minimum Order Quantity (MOQ)	1,000 PCS	First order MOQ can be 100-500 PCS

Key Features & Specifications:

High luminous intensity output with low forward voltage
Extremely low power and operating current
Uniform segment illumination
Standard industrial footprint
Excellent reliability in bright ambient light
Stable performance with long lifetime
Compliant with RoHS and REACH standards

Code: Yellow Green - J/JU. Infuse your displays with dynamic and vivid colors, meticulously crafted to meet your unique design preferences and elevate visual aesthetics.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Code: Amber/Yellow - Y. Create inviting and attention-grabbing displays with this warm, cozy hue that exudes an inviting glow and magnetic appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code: Orange - F. Infuse energy and excitement into your visual displays with our striking, vibrant orange hue that guarantees your display stands out with flair.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code: Super Bright Red - R. Dive into the captivating radiance of this vibrant color, perfect for crafting displays that demand attention and leave a lasting impression.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code: Ultra Bright Red - UR. Elevate your display's impact with this intensely luminous red, delivering unmatched visibility and striking presence.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	80		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Color: Pure Green. Choose this refreshing, crisp green for designs that align seamlessly with eco-friendly themes, creating a rejuvenating and natural appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		180	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Code: Ultra Bright Blue - BH. Revitalize your displays with this cool, vibrant blue, offering a refreshing and modern aesthetic that elevates any setting.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Code: Ultra Bright White - WH. Achieve unmatched clarity and sophistication with this pristine white, elevating your display to new levels of brilliance and elegance.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC): Explore the robust performance attributes that highlight the superior capabilities of our advanced LED display technology.

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) is a beacon of excellence in OEM and ODM services since 2006. Certified under ISO 9001:2015, our legacy of over 15 years showcases our relentless pursuit of innovation and quality.
LIGHTBO empowers its clients with premier, budget-friendly custom solutions that not only reduce expenses but also enhance competitive advantages in the global marketplace.

4-Digit Pure Green 7-Segment LED Display for Timer Control 2 Our 7 Segment LED Display, Customized LED Display, Numeric LED Display, and Dot Matrix LED Display are at the forefront of innovation and design. They integrate seamlessly into diverse applications, enhancing both function and style. Whether you're upgrading home appliances, providing exact temperature and humidity readings, or developing robust solutions for refrigerator controllers, thermostats, and HVAC systems, our products exemplify superior performance and quality. Discover the unique fusion of technology and design with Shenzhen Guangzhibao Technology Co., Ltd.

4-Digit Pure Green 7-Segment LED Display for Timer Control 3

4-Digit Pure Green 7-Segment LED Display for Timer Control 4

4-Digit Pure Green 7-Segment LED Display for Timer Control 5

4-Digit Pure Green 7-Segment LED Display for Timer Control 7

4-Digit Pure Green 7-Segment LED Display for Timer Control 8

4-Digit Pure Green 7-Segment LED Display for Timer Control 9

4-Digit Pure Green 7-Segment LED Display for Timer Control 10

FAQ(Frequently Asked Questions)

Q1 Are you trading company or manufacturer
A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays .
Q2 What is your main products
A: Our main products include 7 Segment LED display, SMD LED Display,Dot matrix LED Display, Arrow LED display, Custom Design LED Display ,LED light bar,Through hole led, SMD LEDs,LED Backlights, and so on .
Q3 What is your MOQ
A: Our MOQ is 1000 pcs , We can also accept sample orders and small orders with quantity less than our MOQ .
Q4 Before placing order, Can I get some samples for test
A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.
Q5 How long is your delivery time
A: Delivery time:About 10-20 days; According to order quantity and raw materials. If you have urgent order,and we have raw materials in stock,
we can adjust our production plan to make it ready within 7-10 days .
Q6 What is your terms of payment
A: We accept bank transfer,T/T,Western Union and Paypal with small amount. Detailes of payment methods can be negotiatble.
Q7 Can you quote me FOB prices
A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF,DDP.
Q8 How can I get your catalogue and price list
A: Yes . Please let us know your email address or contact us from website directly for our catalogue and price list .
Q9 Can I negotiate the prices
A: Yes, we may consider discounts for bulk orders.
Q10 How much will the shipping charges be
A: It depends on the size of your shipment and the method of shipping.
We will offer the charge to you as you requested.
Q11 Can you do custom design products
A: Yes , OEM&ODM service are available .We can customize the sizes,led color and functional icons according to your requirements.
Q12 If I send my design , can you make it for myself only ,and will not show it to any one else
A: Yes , we will not show it or sell to others without your authorization.
Q13 IWhat will be the samples lead time for customized products
A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers .
Q14 What is the shipping methods
A:We usually ship the goods by DHL, FEDEX,UPS,EMS,BY AIR,BY SEA etc, also you can choose the other way that best for you.
Q15 How do you ensure the quality of your products
A: we are ISO 9001 QMS ceritified manufacturers with more than 20 years experience ,We conduct twice 100% percent test for all of our products before shipment .
