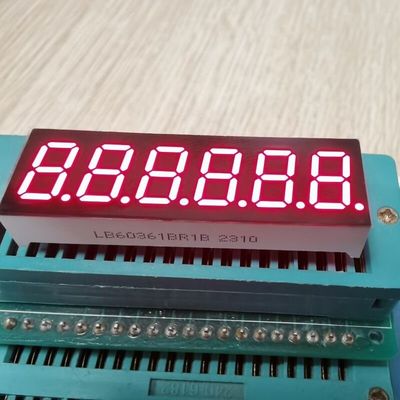

High bright Red 6-digit 0.36-inch 7 Segment LED Display, Widely Used for Instrument Panel

High bright Red 6-digit 0.36-inch 7 Segment LED Display, Widely Used for Instrument Panel

ব্র্যান্ড নাম:	LIGHT-BO
মডেল নম্বর:	LB-60362IC1B-#6498
MOQ:	1000
অর্থ প্রদানের শর্তাবলী:	T/T,Western Union
সরবরাহের ক্ষমতা:	50000PCS/day

বিস্তারিত তথ্য

পণ্যের বর্ণনা

বিস্তারিত তথ্য

Place of Origin:

Shenzhen,China

সাক্ষ্যদান:

ISO9001&RoHS

polarity:

Common Anode

Emitting color:

High bright Red

Quality:

High quality

Brightness:

High Brightness

Usage:

Indoor/Outdoor

Digit:

Digital Height:

0.36-inch

Pin Type:

Application:

Temperature control

Packaging Details:

EPE+Carton

Supply Ability:

50000PCS/day

বিশেষভাবে তুলে ধরা:

red 6-digit 7 segment LED display

0.36-inch 7 segment LED display

instrument panel LED display

পণ্যের বর্ণনা

Digit height: 0.36 inches (9.2mm)Outer dimensions: 45.8 x 14mmPolarity: common anodeEmitting colors: available in red, blue, yellow green, pure green, pure white, amber, and orangeHigh-luminous intensity low-currentWith RoHS Directive-compliantWidely used for set-up boxes, home appliances, temperature indicators, instrument panels

Quick Detail of Segment LED Displays

1. We can supply you all kinds of 7 segment LED display:

Digit size: from 0.25" to 20"
Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment,14segment and16 segment both available

3. Available Emitting color: Red, Yellow-green,green, blue, yellow, pink, white, bi-color

4. Available surface color: black,gray or red

Feature of Segment LED Displays

White segment Black surface
High luminous intensity
Low current operation
Stable performance
Continuous uniform segments
Easy mounting on PCB
IC compatible
RoHS compliant

Application of Segment LED Displays

Audio Equipment or instrument panels;
General using for digital indicators;
Multimedia products;
Bank exchange rate display;
LED clock display;
Display for gas station and other various display areas of equipment/machine.
Industrial Equipment

Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems

Applications

Audio equipment and instrument panels
Home electronic appliances
Numeric displays
Multimedia products
Digital indicators, temperature indicators, humidity indicators, process indicators

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Electrical & Optical Characteristics

Pure Green (Code: G)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6	-	3.2	V
Reverse Voltage	Vr	Ir=10uA	5	-	-	V
Luminous Intensity	Iv	If=10mA	120	-	180	mcd
Wavelength	Dλ	If=10mA	515	-	525	nm

Additional color variants available including Yellow Green, Amber/Yellow, Orange, Super Bright Red, Ultra Bright Red, Ultra Bright Blue, and Ultra Bright White with detailed specifications available upon request.

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display - widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems.

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, specializing in R&D, manufacturing and sales of optoelectronic LED displays. ISO 9001:2015 Quality Management Systems certified with over 15 years of OEM and ODM experience.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping Services

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are an original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through Hole LEDs, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pieces. We also accept sample orders and small quantities below our MOQ.

Q4: Can I get samples for testing before placing an order?

A: Yes. We provide 5-10 free samples for testing, with freight costs borne by the customer.

Q5: How long is your delivery time?

A: Delivery time is approximately 10-20 days, depending on order quantity and raw materials. For urgent orders with available materials, we can complete within 7-10 days.

Q6: What are your payment terms?

A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.

Q7: Can you provide FOB prices?

A: Yes. We quote prices based on INCOTERMS including EXW, FOB, CIF, and DDP.

Q8: How can I get your catalog and price list?

A: Please provide your email address or contact us directly through our website.

Q9: Can I negotiate prices?

A: Yes, we offer discounts for bulk orders.

Q10: How much are shipping charges?

A: Shipping costs depend on shipment size and method. We provide quotes upon request.

Q11: Do you offer custom design services?

A: Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

Q12: Will you keep my custom design confidential?

A: Yes, we will not share or sell your design to others without authorization.

Q13: What is the lead time for customized product samples?

A: Sample lead time is approximately 20-25 working days after receiving mold cost and design approval.

Q14: What shipping methods do you use?

A: We ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.

Q15: How do you ensure product quality?

A: As ISO 9001 certified manufacturers with over 20 years of experience, we conduct 100% testing of all products twice before shipment.
